Bulk Writes to D365 Over OData in .NET - Upserting 250,000 Rows Without Getting Throttled

The paging post ended with 250,000 SalesOrderLines rows read out of Dynamics 365 in just over two minutes. This post is about the trip back: a nightly job that recalculates a discount column for every one of those rows and has to write the result into D365 again.

Reading is forgiving. Writing is where the service-protection limits in D365 Finance and Dataverse actually bite, because every write is a transaction, every transaction holds locks, and the platform throttles you per user the moment you look like you are trying to load a table. The job that produced the numbers below started life as a foreach with one PATCH per row and took 35 minutes. The last version takes two and a half.

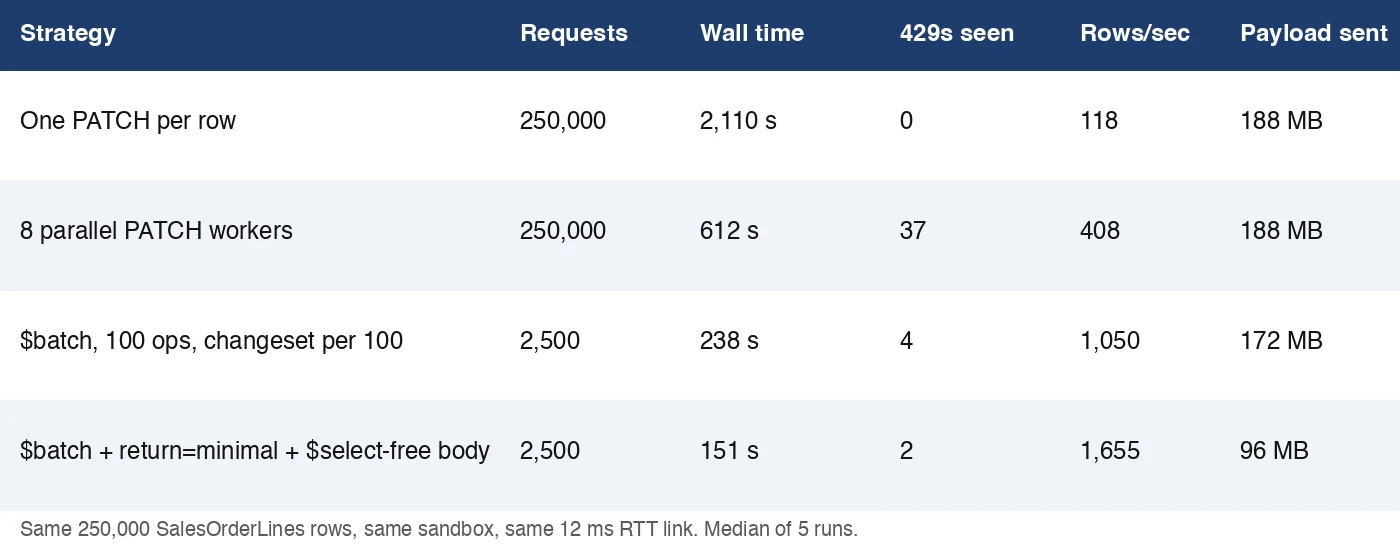

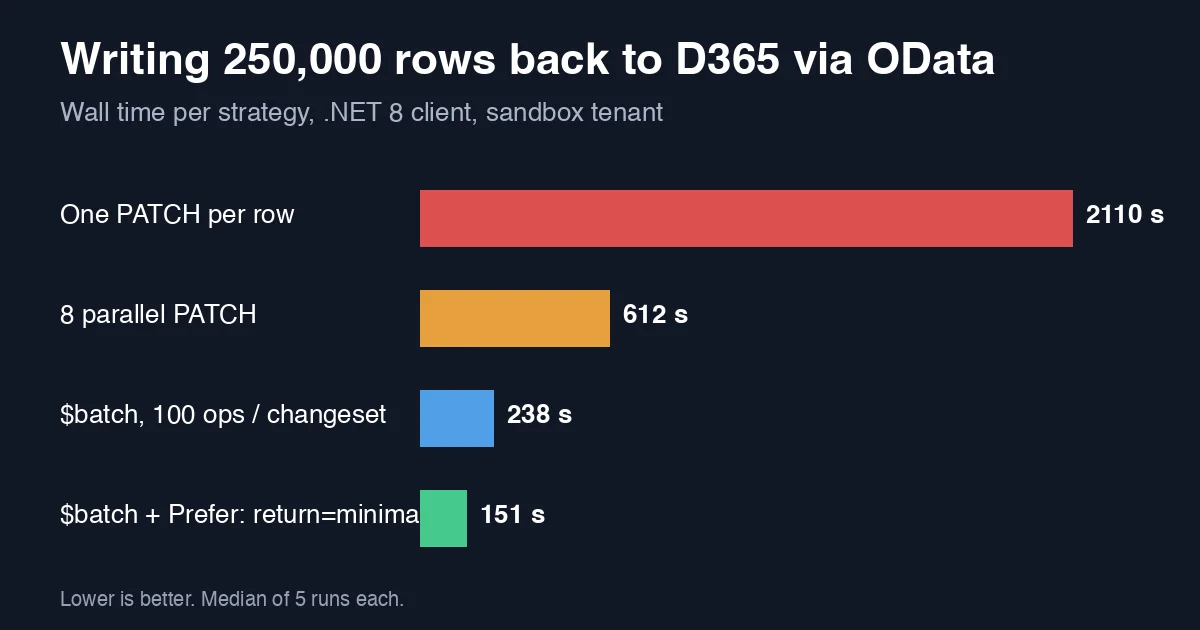

The measurement

Same sandbox tenant as the paging post, same .NET 8 console client over a 12 ms RTT link, same 250,000 rows. Each row needs one PATCH that updates two columns (LineDiscountPercentage, LineDiscountAmount). Numbers are the median of 5 runs.

The per-row version never gets throttled - it is simply too slow to trigger the limit. Everything faster than it has to deal with 429s.

Three things stand out:

1. Parallelism alone hits the wall fast. Eight workers is a 3.4x win, but 37 of the runs’ requests came back 429 Too Many Requests with Retry-After, and at 12 workers the job spent more time sleeping than writing.
2. $batch changes what the server counts. D365 service-protection limits count requests and execution time, not rows. One $batch with 100 PATCH operations is one request. 2,500 requests instead of 250,000 is what buys the next 2.6x.
3. Prefer: return=minimal is the cheapest line in the table. By default a PATCH to D365 returns the full updated entity - here about 380 bytes of JSON per row that the job never read. Asking for 204 No Content halves the bytes on the wire and cuts another 36% off wall time, because the server skips re-serialising the row.

Version 1: one PATCH per row

This is what most integrations start as, and it is correct.

foreach (var line in lines)
{
    using var req = new HttpRequestMessage(HttpMethod.Patch,
        $"data/SalesOrderLines(dataAreaId='usmf',SalesOrderNumber='{line.OrderNumber}',LineNumber={line.LineNumber})");
    req.Headers.Add("If-Match", "*");
    req.Content = JsonContent.Create(new
    {
        LineDiscountPercentage = line.DiscountPercentage,
        LineDiscountAmount = line.DiscountAmount
    });

    using var res = await http.SendAsync(req, ct);
    res.EnsureSuccessStatusCode();
}

Two details matter even here. If-Match: * tells D365 you do not care about the ETag; without it some entities reject the PATCH with 428 Precondition Required. And the body only contains the two columns you are changing - sending the whole entity back makes D365 validate every field and is a common source of “I only changed the discount, why did it fail on the warehouse?” errors.

At 118 rows/second this version takes 35 minutes. It never sees a 429 because a single sequential caller is below the limit by design.

Version 2: parallel workers and the 429 dance

The obvious fix is Parallel.ForEachAsync:

await Parallel.ForEachAsync(lines,
    new ParallelOptions { MaxDegreeOfParallelism = 8, CancellationToken = ct },
    async (line, token) => await PatchWithRetryAsync(http, line, token));

The moment you do this you need to handle throttling, because D365 will throttle you. The service-protection limits for Dataverse are documented as 6,000 requests per 5 minutes per user, 20 minutes of combined execution time per 5 minutes, and 52 concurrent requests - and D365 Finance applies similar per-user priority-based throttling. Eight workers doing 50 ms calls is roughly 160 requests/second, or 48,000 per 5 minutes: eight times the quota.

The retry has to honour Retry-After, and it has to be per request, not per job:

static async Task PatchWithRetryAsync(HttpClient http, SalesLine line, CancellationToken ct)
{
    for (var attempt = 0; ; attempt++)
    {
        using var req = BuildPatch(line);
        using var res = await http.SendAsync(req, ct);

        if (res.StatusCode != HttpStatusCode.TooManyRequests)
        {
            res.EnsureSuccessStatusCode();
            return;
        }

        if (attempt >= 5) throw new HttpRequestException($"Throttled 5 times on {line.OrderNumber}/{line.LineNumber}");

        var delay = res.Headers.RetryAfter?.Delta ?? TimeSpan.FromSeconds(Math.Pow(2, attempt));
        await Task.Delay(delay, ct);
    }
}

With this in place the job finished in 612 s. But it only got there because of the retries: 37 of them, averaging 28 seconds of Retry-After each. That is 17 minutes of worker time spent sleeping, and it explains why going from 8 to 12 workers made the job slower, not faster. If you are using Microsoft.Extensions.Http.Resilience, the standard pipeline’s retry handles 429 and Retry-After for you; the point is that you must have something doing it.

Version 3: $batch with changesets

The earlier $batch post covered the request format for reads. Writes add one concept: a changeset. Operations inside a changeset are atomic - D365 either applies all of them or none - and the OData spec requires each changeset to be an all-write group.

The JSON batch format makes this an atomicityGroup field. Here the 250,000 rows are chunked into 2,500 batches of 100, each batch being one changeset:

foreach (var chunk in lines.Chunk(100))
{
    var requests = chunk.Select((line, i) => new
    {
        id = i.ToString(),
        atomicityGroup = "g1",
        method = "PATCH",
        url = $"SalesOrderLines(dataAreaId='usmf',SalesOrderNumber='{line.OrderNumber}',LineNumber={line.LineNumber})",
        headers = new Dictionary<string, string>
        {
            ["Content-Type"] = "application/json",
            ["If-Match"] = "*"
        },
        body = new
        {
            LineDiscountPercentage = line.DiscountPercentage,
            LineDiscountAmount = line.DiscountAmount
        }
    });

    using var req = new HttpRequestMessage(HttpMethod.Post, "data/$batch")
    {
        Content = JsonContent.Create(new { requests })
    };

    using var res = await SendWithRetryAsync(http, req, ct);
    var batch = await res.Content.ReadFromJsonAsync<BatchResponse>(ct);

    foreach (var r in batch!.Responses.Where(r => r.Status >= 400))
        failures.Add((chunk[int.Parse(r.Id)], r.Status, r.Body?.ToString()));
}

Two production notes on changesets:

• Pick the changeset size by failure cost, not throughput. 100 was the sweet spot here: 1,000 was only 8% faster but a single bad row rolled back 999 good ones and the retry logic became a project of its own. If rows are independent, you can also omit atomicityGroup entirely so each PATCH succeeds or fails on its own - throughput was identical, only the semantics differ.
• D365 Finance caps a batch at 1,000 operations and Dataverse at 1,000 as well; the request is rejected outright above that, not partially applied.

With 2,500 requests instead of 250,000 the job dropped to 238 s and saw only 4 throttles, all of them because the execution-time budget was hit, not the request count.

Version 4: stop asking for the row back

Every PATCH response in versions 1-3 carried the updated entity: about 380 bytes of JSON the job discarded. The Prefer header fixes that:

req.Headers.Add("Prefer", "return=minimal");

Inside a batch the header goes on each subrequest’s headers dictionary. D365 then answers each operation with 204 No Content and an OData-EntityId header instead of a body. The measured effect was larger than the byte count suggests - 238 s to 151 s - because the server also skips reloading and serialising the row after the update, which on SalesOrderLines involves several computed columns.

The remaining 2 throttles were on execution time. Going to 16 parallel batches pushed that to 11 throttles and the wall time back up to 190 s; 4 parallel batches stayed throttle-free at 160 s, which is the configuration the job now runs with. Find your tenant’s number the same way as for reads: watch for 429 and Retry-After, then back off one step.

What the 429 handling must do differently for writes

Reads are idempotent, so a blanket retry is safe. For writes:

• A throttled $batch has not been applied. D365 returns 429 for the whole batch before executing any subrequest, so retrying the entire batch is safe. A 500 or a timeout in the middle of a batch is not - re-read the rows or use If-Match with real ETags instead of * so a retry on an already-updated row fails cleanly with 412.
• Use a dedicated integration user. Service-protection limits are per user. A sync job sharing a user with interactive Power Apps sessions throttles the humans too.
• Log x-ms-service-request-id from every 429. Microsoft support will ask for it, and it is the only way to correlate a throttle with the tenant-level telemetry in LCS.

Checklist

1. Never write one row per request to D365 when you have more than a few hundred rows; the per-request budget, not your bandwidth, is the limit.
2. Use $batch with 100-operation changesets; 2,500 requests are an order of magnitude easier to keep under service protection than 250,000.
3. Add Prefer: return=minimal to every write whose response you do not read - it was worth 36% here.
4. Send only the columns that changed and If-Match: * (or a real ETag if retries must be safe).
5. Honour Retry-After per request, log the service request id, and find the parallelism ceiling by watching for 429 - then run one step below it.
